200m Small Water Drilling Machine Farm Irrigation Well Drill Rig

Product Description

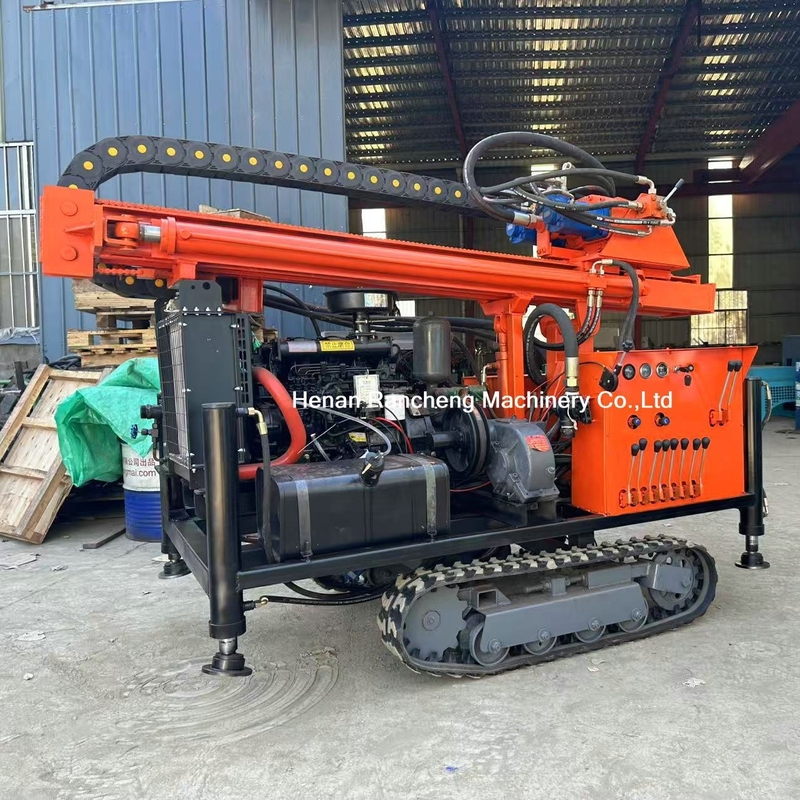

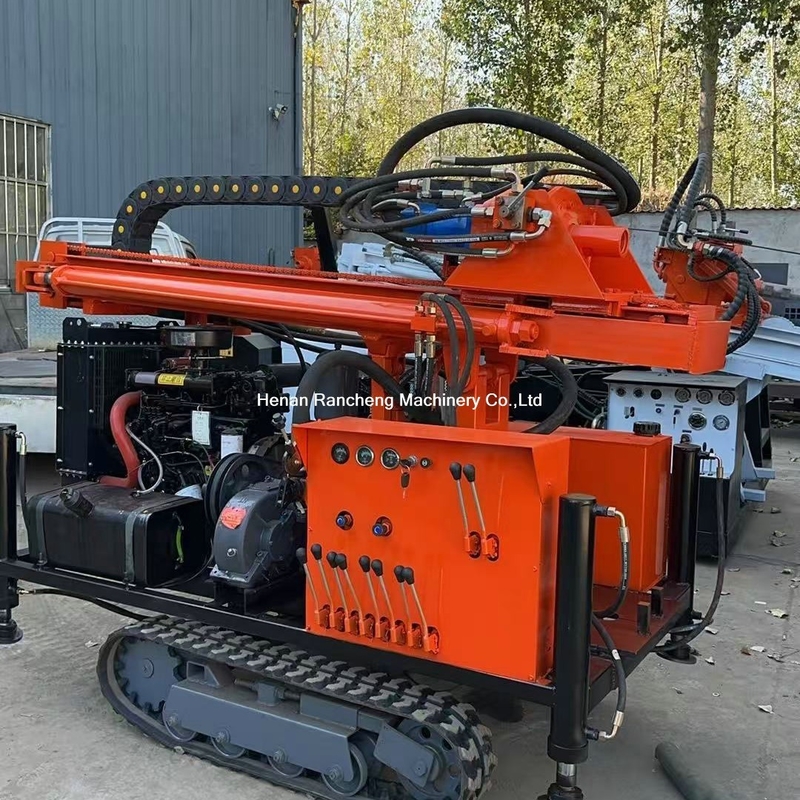

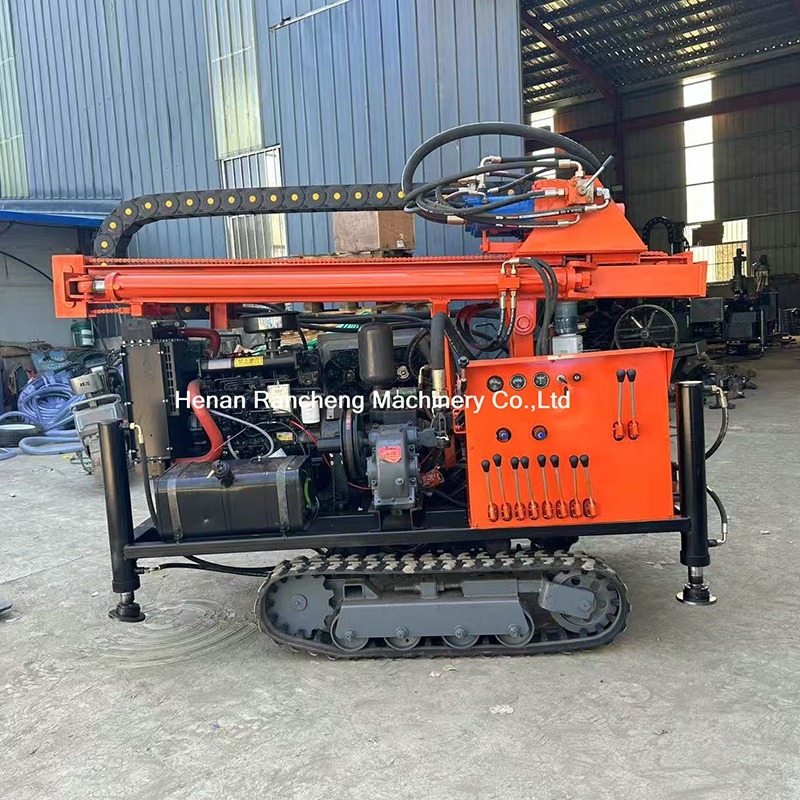

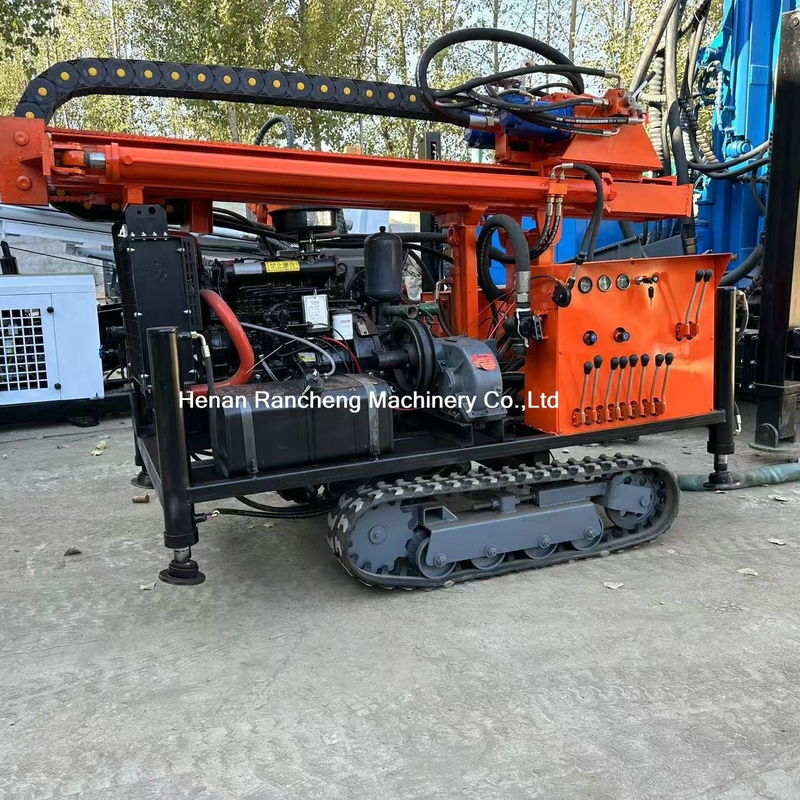

The RCS200C is a compact water well drill rig whose core lies in its top drive hydraulic system. This system provides stable torque to the drill string, reducing energy loss and enabling more precise drilling control. It supports dual-mode operation with both a mud pump and an air compressor, enabling flexible selection of air, foam, or mud circulation methods to suit different formation types. Whether rotary or down-the-hole hammer drilling, this rig efficiently operates in a wide range of geological conditions, from soft soil and gravel to hard rock, with a drilling depth range of 0 to 200 meters. The fully hydraulic layout simplifies power transmission, reduces points of failure, and helps maintain a stable progress on the job site.

The RCS200C weighs approximately 2,000 kg and is mounted on a rubber-track chassis, making it easy to tow with a standard pickup truck, eliminating the need for large transport vehicles and reducing logistics costs. A diesel engine provides independent, off-grid power, enabling operation in remote mountainous areas with limited electricity. Its size and maneuverability also make it suitable for narrow or access-restricted job sites. The rig is widely used in water supply projects, agricultural irrigation wells, shallow geothermal installations, exploration sampling boreholes, environmental monitoring wells, and small-diameter foundation/micropile projects, providing a versatile solution for various field conditions.

Technical data

Key features

1. Hydraulic Drilling System

The RCS200C drilling rig is equipped with a fully hydraulic drive system, ensuring stable power transmission and reducing the risk of mechanical failure. It can be used with both down-the-hole hammer and rotary drilling, meeting the needs of various projects. It can also be equipped with a mud pump or air compressor, enabling it to penetrate even hard rock when necessary.

2. Adaptability to Complex Terrain

The rubber track chassis allows the rig to maneuver flexibly over uneven terrain, such as farmland, hillsides, and narrow paths. Weighing approximately 2,000 kg, it can be towed by a standard pickup truck for easy transportation. Its modular design allows for rapid assembly and disassembly, allowing on-site setup in less than 30 minutes.

3. Compatible with Various Geological Conditions

The RCS200C is compatible with air, foam, and mud drilling systems, allowing for adjustments to suit different formations. It can handle soft soil, gravel, and hard rock with ease, making it useful in field projects such as rural water supply wells. Furthermore, it operates effectively in diverse environments, including mountainous terrain, arid regions, and low-temperature areas.

4. Balancing Cost Control and Practicality

The diesel engine allows this device to operate independently of the power grid, helping to reduce energy operating and maintenance costs. It can be used in a variety of drilling scenarios, including water wells, geothermal heating wells, test holes, and shallow exploration projects. Furthermore, the system is designed for single-person operation, reducing on-site manpower requirements.

Application

The RCS200C borewell digging machine is designed to meet the needs of various drilling projects across multiple sectors. It is well-suited for domestic water supply, including household wells, village water systems, and emergency water sourcing. In the field of agricultural irrigation, it supports the construction of wells for farmland, orchard drip irrigation, and pasture water supply.

The rig is also used in renewable energy development, such as geothermal air conditioning wells and shallow geothermal exploration. In industrial and exploration drilling, it can be applied to geological sampling, environmental monitoring wells, and small-diameter foundation holes.

The RCS200C also performs reliably under special working conditions, including operations in mountainous rock formations, areas without electrical infrastructure, and confined construction sites. This versatility makes it a practical choice for users with diverse drilling requirements.
