Adaptive Pressure Regulation Water Well Drilling Machine 350m Depth DTH Rig
Product Description
The RCF350C drill rig is powerful and adaptable, making it a perfect match for complex geological environments. It operates reliably in both soft soil and hard rock, with a maximum drilling depth of 350 meters, meeting diverse needs such as agricultural irrigation, industrial exploration, and urban water supply.
Key features :
Intelligent pressure regulation: Dynamically optimizes impact force, ensuring efficient rock breaking while reducing energy loss.
Powerful rotary power: High torque output significantly accelerates drilling speed and shortens project cycle times.
High modularity: Quickly adjust configurations to suit different operating conditions, adapting to diverse operating environments.
Extreme durability: The heavy-duty design ensures stable operation even in extreme conditions, reducing maintenance costs.
With advanced impact optimization technology and precise pressure control, the RCF350C drill rig not only ensures efficient drilling but also significantly improves energy efficiency, providing users with a powerful, durable, and professional drilling experience.
Technical Parameters
| Model |
RCF350C |
| Bore diameter(Hammer) |
140-350mm |
| Bore depth |
350m |
| Air consumption |
17-35m³/min |
| Air pressure |
1.7-3.5Mpa |
| Pipe diameter |
89mm/102mm |
| Pipe length |
1m/2m/3m/6m |
| Lifting force |
22T |
| Lifting speed |
3m/min |
| feeding speed |
0.5-5m/min |
| Fast lifting speed |
30m/min |
| Fast feeding speed |
50m/min |
| Max torque of the rotary |
6200-8500Nm |
| Rotary speed |
55-115r/min |
| Hoist lifting capacity |
2T |
| Mud Pump flow |
450L/min (option) |
| High hydraulic leg |
1.5m |
| Feeding efficiency |
10-35m/h |
| Travel speed |
2.5Km/h |
| Climb ability |
30° |
| Dimension(L*W*H) |
6000×2000×2550mm |
| Weight |
8600Kg |
| Diesel engine |
91KW Yuchai engine |
| Drilling way |
Air compressor drilling or mud pump drilling |
| Operating system |
Full hydraulic operation |
After service
1,24/7 service by chat online and phone.
2,Lifelong and free technical support.
3,Service overseas: if you need, we can dispatch an engineer to your door.
FAQ
Q:Are you the manufacturer?
A: Yes, we are a factory with more than 10 years of manufacturing experience.
Q:What is the warranty of our machine?
A:Our main machine enjoys a 1-year warranty. And we provide videos for machine install and operation.
Q:How do you make our business a long-term and good relationship?
A:We keep good quality and competitive prices to ensure our customers' benefits.
Q:Do you have any certificates for your machine?
A: All of our products coming with the certificates of CE and ISO 9001:2000.

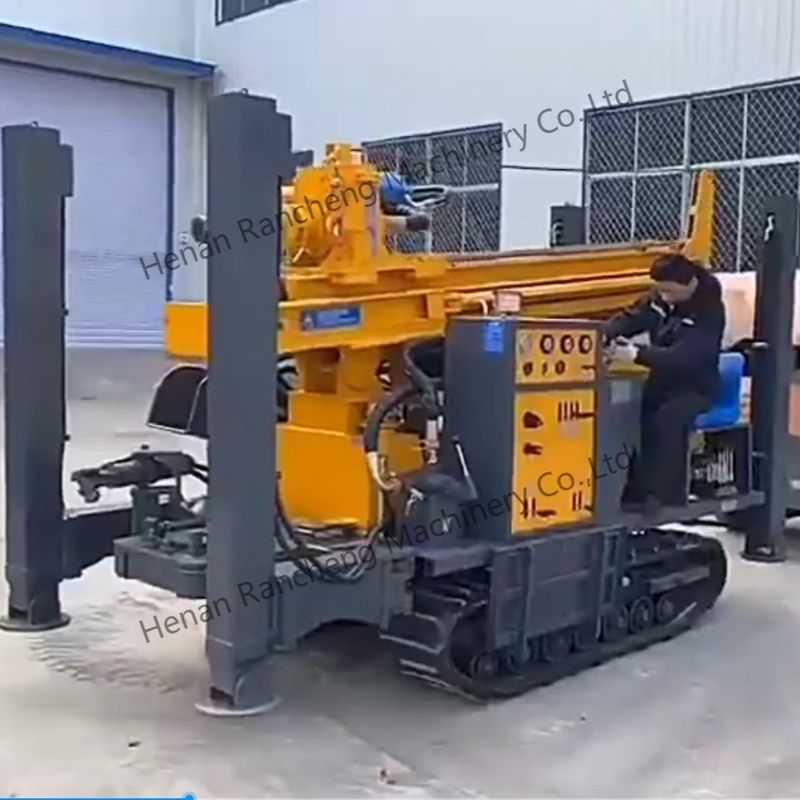

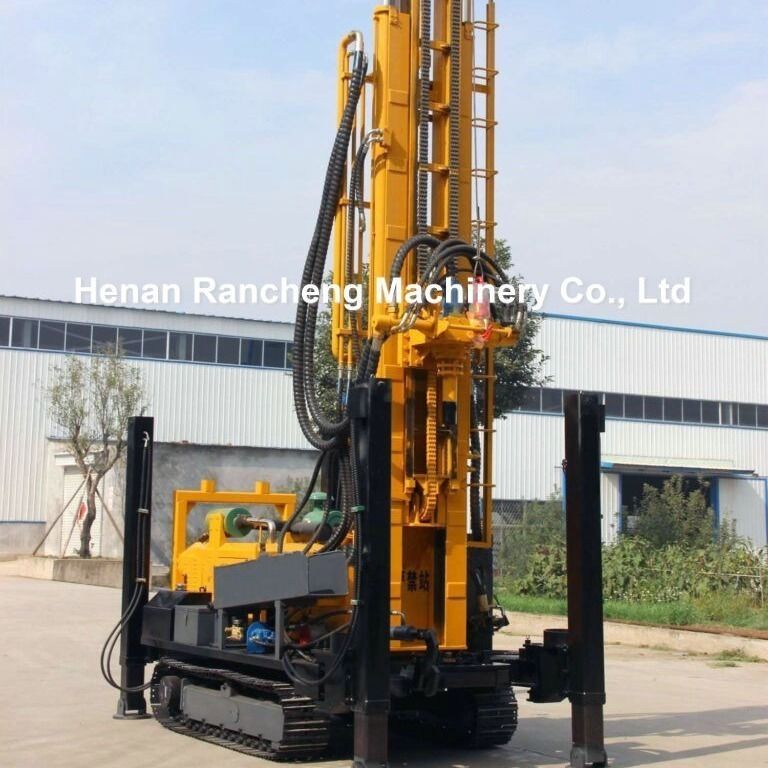

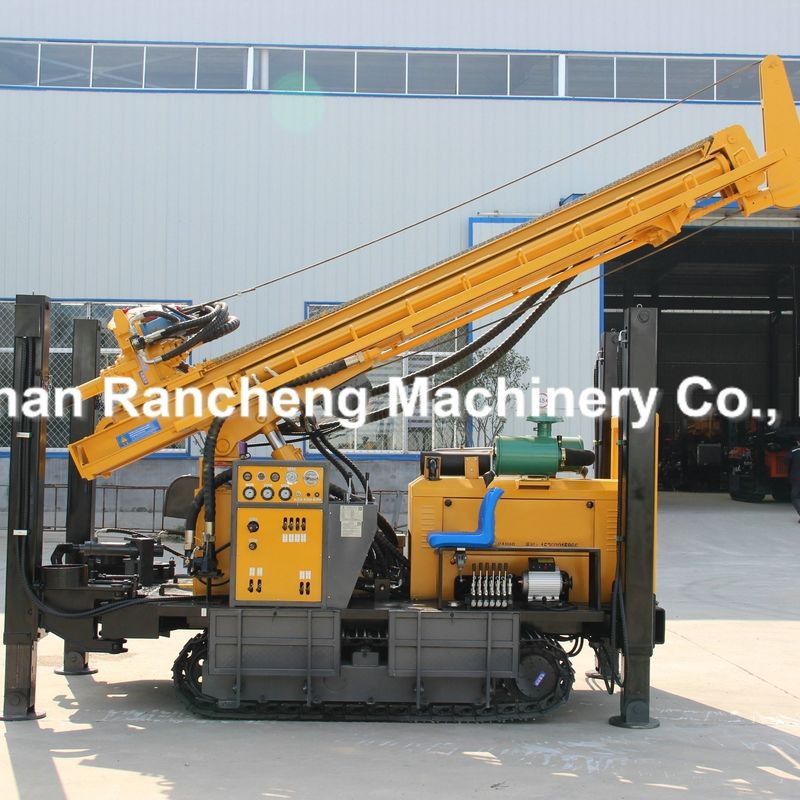

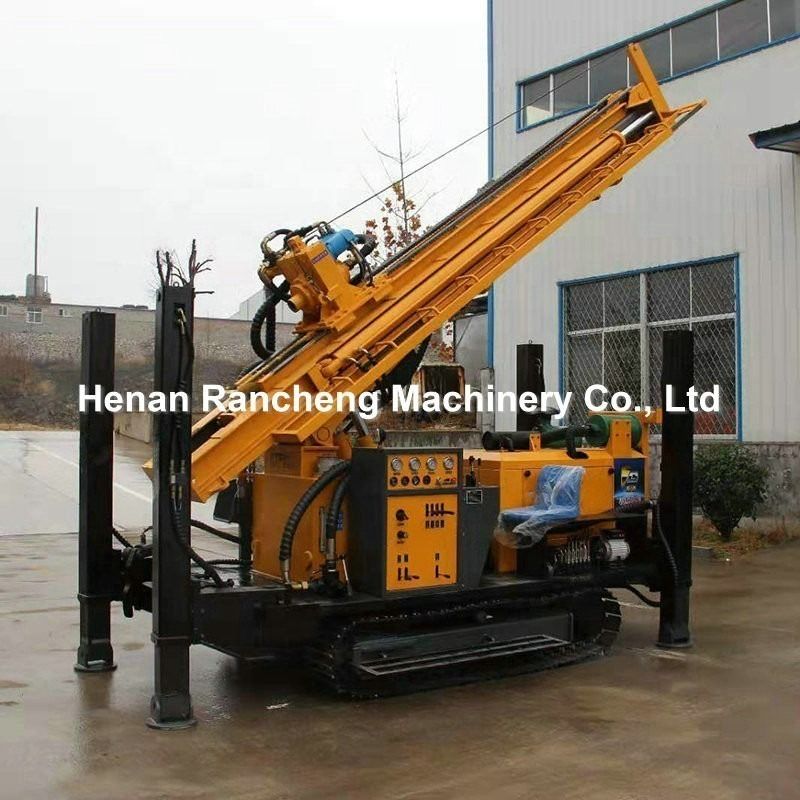

Machine picture display
