Name: Single Cylinder Piston Pump BW160H - 160L/Min Flow, 1.3MPa Pressure Mud Pump
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: BW160
Price: 2380 USD
Availability: InStock

Evde > Ürünler > Sondaj Çamuru Pompası >

Single Cylinder Piston Pump BW160H - 160L/Min Flow, 1.3MPa Pressure Mud Pump

Single Cylinder Piston Pump BW160H

160L/Min Flow Mud Pump

1.3MPa Pressure Drilling Pump

Place of Origin:

China

Marka adı:

RanCheng

Sertifika:

CE, ISO 9001:2000

Model Number:

BW160

Bizimle İletişim

Rica etmek Alıntı

Ürün Ayrıntıları

Model:

BW160

Flow rate:

160L/min

pressure:

1.3 mpa

Transmission power:

5.5KW

frequency of stroke:

147 times/min

Vurgulamak:

Single Cylinder Piston Pump BW160H

160L/Min Flow Mud Pump

1.3MPa Pressure Drilling Pump

Ödeme ve Nakliye Şartları

Minimum Order Quantity

Fiyat

USD2380

Packaging Details

Standard shipping

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

İlişkili Ürünler

Video

Tek Silindirli Pistonlu Pompa BW160H - 160L/Dak Akış, 1.3MPa Basınç

En İyi Fiyatı Alın

Video

Tek Silindir Pistonlu Pompa BW160H - 160L/Dak Akış, 1.3MPa Basınç Çamur Pompası

En İyi Fiyatı Alın

Video

185KW Gücünde 7MPa Maksimum Basınçlı Su Kuyusu Sondajı için Sondaj Çamur Pompası

En İyi Fiyatı Alın

Video

185KW Güç 7MPa En yüksek basınç sondaj çamur pompası 1000m derin su kuyusu projeleri için 7200kg

En İyi Fiyatı Alın

Bizimle İletişim

Şimdi iletişime geçin

Ürün Tanımı

Single Cylinder Piston Pump BW160H - 160L/Min Flow, 1.3MPa Pressure Mud Pump

Product Specifications

Attribute	Value
Model	BW160
Flow rate	160L/min
Pressure	1.3 MPa
Transmission power	5.5KW
Frequency of stroke	147 times/min

Product Overview

The BW160 mud pump is a single-cylinder piston pump equipped with a single-cylinder diesel engine, operating in first gear at a constant speed. With a flow rate of 160 liters per minute and a maximum pressure of 1.3 MPa, it is primarily used in various drilling projects.

Technical Parameters

Parameter	Value
Model No.	BW160
Cylinder diameter	95mm
Piston Stroke	90mm
Frequency of stroke	147 times/min
Flow rate	160 L/min
Pressure	1.3 MPa
Power input	5.5 kW
Diameter of suction pipe	50mm
Diameter of discharge pipe	40mm
Overall dimensions (L×W×H)	850×600×550mm
Weight	130kg

Key Features

Compact design with small volume and light weight
Simple operation and easy relocation
Capable of transporting mud with sand content less than 5% or other liquids with pH value of about 7-8

Applications

The BW160 mud pump is a portable unit primarily designed to match with small-diameter geological exploration and engineering exploration drilling rigs with drilling depth of less than 300m.

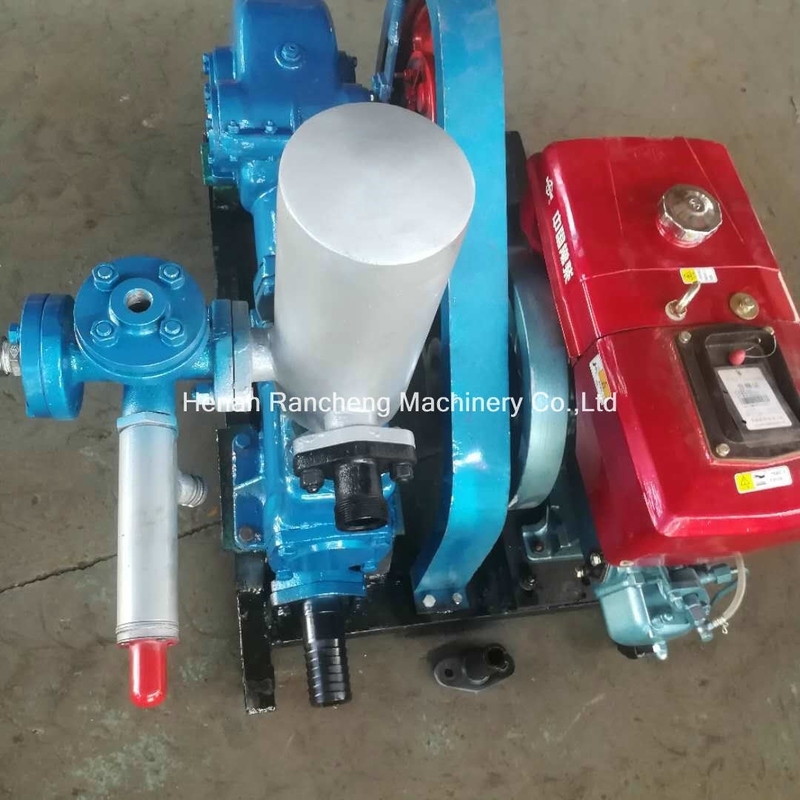

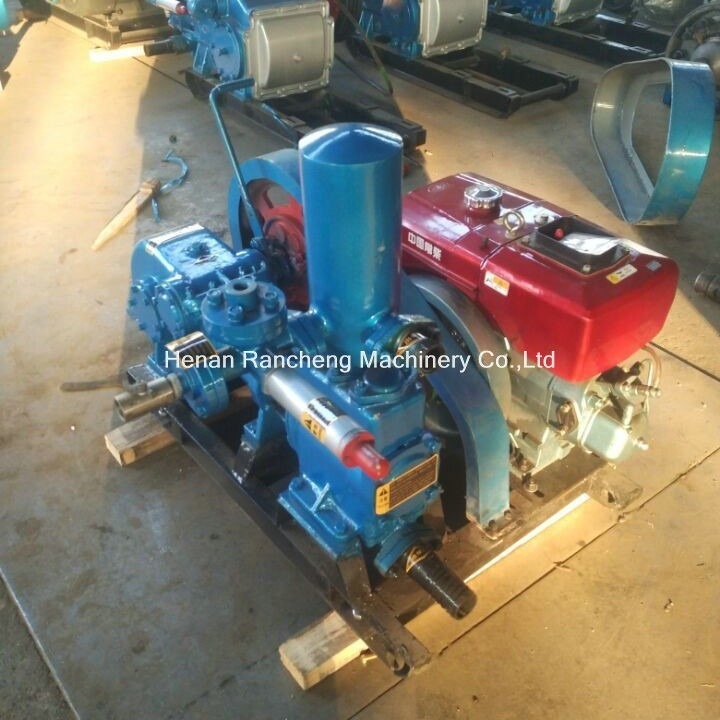

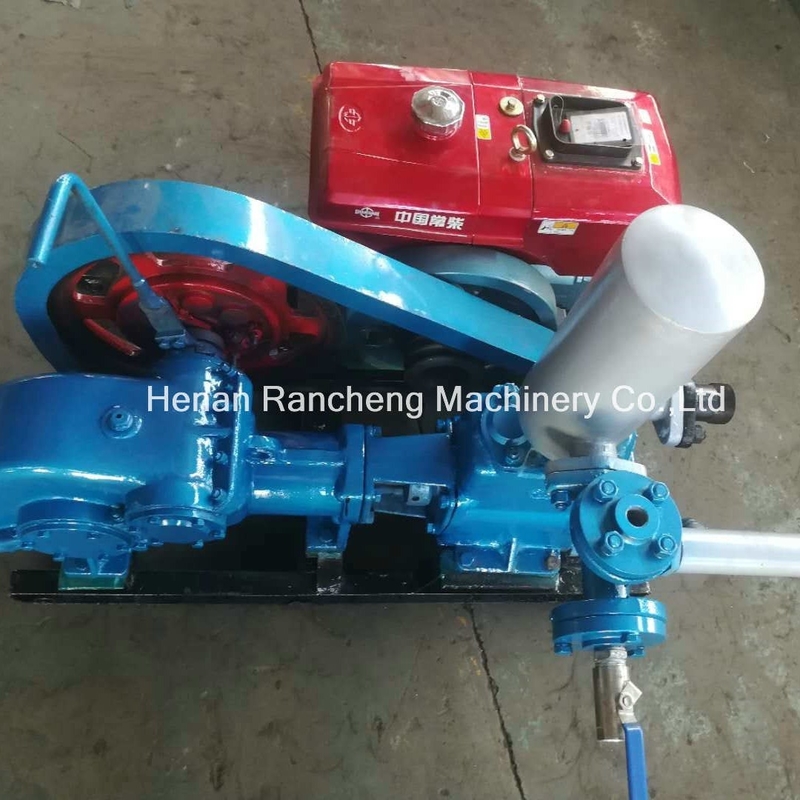

Product Images
