Evde > Ürünler > Su kuyusu delme makinesi >
350m Hydraulic Swivel Diesel Borehole Water Well Drill Rig Equipment Portable Crawler Water Well Drilling Rig Machine

350m Hydraulic Swivel Diesel Borehole Water Well Drill Rig Equipment Portable Crawler Water Well Drilling Rig Machine

350m hydraulic water well drill rig

portable crawler drilling rig machine

diesel borehole drilling equipment

Menşe yeri:

Çin

Marka adı:

RanCheng

Sertifika:

CE, ISO 9001:2000

Model numarası:

RCF350C

Bizimle İletişim
Rica etmek Alıntı
350m Hydraulic Swivel Diesel Borehole Water Well Drill Rig Equipment Portable Crawler Water Well Drilling Rig Machine
350m Hydraulic Swivel Diesel Borehole Water Well Drill Rig Equipment Portable Crawler Water Well Drilling Rig Machine 350m Hydraulic Swivel Diesel Borehole Water Well Drill Rig Equipment Portable Crawler Water Well Drilling Rig Machine 350m Hydraulic Swivel Diesel Borehole Water Well Drill Rig Equipment Portable Crawler Water Well Drilling Rig Machine 350m Hydraulic Swivel Diesel Borehole Water Well Drill Rig Equipment Portable Crawler Water Well Drilling Rig Machine
Ürün Ayrıntıları
İsim:
350m 450m 500m hidrolik döner dizel sondaj kılıfı su kuyusu teçhizat ekipmanı taşınabilir paletli su
Model:
RCF350C
Delik Derinliği:
350 Milyon
Hava tüketimi:
17-36m³/dak
Hava basıncı:
1.7-3.5mpa
Boyut (L*W*H):
6000 × 2000 × 2550mm
Vurgulamak:

350m hydraulic water well drill rig

,

portable crawler drilling rig machine

,

diesel borehole drilling equipment

Ödeme ve Nakliye Şartları
Min sipariş miktarı
1
Fiyat
USD29860-USD39860
Ambalaj bilgileri
Bir 20 "konteyner tarafından gönderilebilir
Teslim süresi
10-15 iş günü
Ödeme koşulları
T/T, Western Union
Yetenek temini
Ayda 100 set
İlişkili Ürünler
İyi bir fiyat. RCF400C Full Hydraulic Water Well Drilling Rig Crawler-type 400 Meter Water Well Drilling Rig çevrimiçi Video

RCF400C Full Hydraulic Water Well Drilling Rig Crawler-type 400 Meter Water Well Drilling Rig

En İyi Fiyatı Alın
İyi bir fiyat. 350m Hydraulic Swivel Diesel Borehole Water Well Drill Rig Equipment Portable Crawler Water Well Drilling Rig Machine çevrimiçi Video

350m Hydraulic Swivel Diesel Borehole Water Well Drill Rig Equipment Portable Crawler Water Well Drilling Rig Machine

En İyi Fiyatı Alın
İyi bir fiyat. 680m crawler drilling Hydraulic water well drilling rig multi functional drilling equipment with 154KW cummins engine çevrimiçi Video

680m crawler drilling Hydraulic water well drilling rig multi functional drilling equipment with 154KW cummins engine

En İyi Fiyatı Alın
İyi bir fiyat. Multifunctional 800m Deep Hydraulic Crawler Drilling Machinery çevrimiçi Video

Multifunctional 800m Deep Hydraulic Crawler Drilling Machinery

En İyi Fiyatı Alın
Bizimle İletişim
Şimdi iletişime geçin
Ürün Tanımı

350m Hydraulic Swivel Diesel Borehole Water Well Drill Rig Equipment Portable Crawler Water Well Drilling Rig Machine

Product Description


The RCF350C deepwater well drilling rig is a product independently developed by our company.
Made of high-quality materials and featuring a stylish and compact design, our rig boasts higher efficiency, lower failure rates, greater cost-effectiveness and durability, and offers a superior overall cost-effectiveness. Our water well drilling rigs have been well-recognized in the market and received positive feedback from our customers.



Our water well drilling rigs utilize the latest models and advanced hydraulic technology, offering low energy consumption, high torque, and convenient well positioning. The combination of a new-generation down-the-hole hammer and increased pneumatic power significantly increases drilling speed.



Technical Parameters

Model RCF350C
Bore diameter(Hammer) 140-350mm
Bore depth 350m
Air consumption 17-35m³/min
Air pressure 1.7-3.5Mpa
Pipe diameter 89mm/102mm
Pipe length 1m/2m/3m/6m
Lifting force 22T
Lifting speed 3m/min
feeding speed 0.5-5m/min
Fast lifting speed 30m/min
Fast feeding speed 50m/min
Max torque of the rotary 6200-8500Nm
Rotary speed 55-115r/min
Hoist lifting capacity 2T
Mud Pump flow 450L/min (option)
High hydraulic leg 1.5m
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 6000×2000×2550mm
Weight 8600Kg
Diesel engine 91KW Yuchai engine
Drilling way Air compressor drilling or mud pump drilling
Operating system Full hydraulic operation


Application



The water well drilling machine are mainly used for well drilling in resource exploration and hydrology wells, civil use water well, agriculture irrigation etc projects.



After service

We offer 24 / 7 online chat and phone support to ensure you're always ready for help. In addition, we also provide lifetime free technical support, as well as overseas services, if you need it, we can send engineers to your site to provide support.

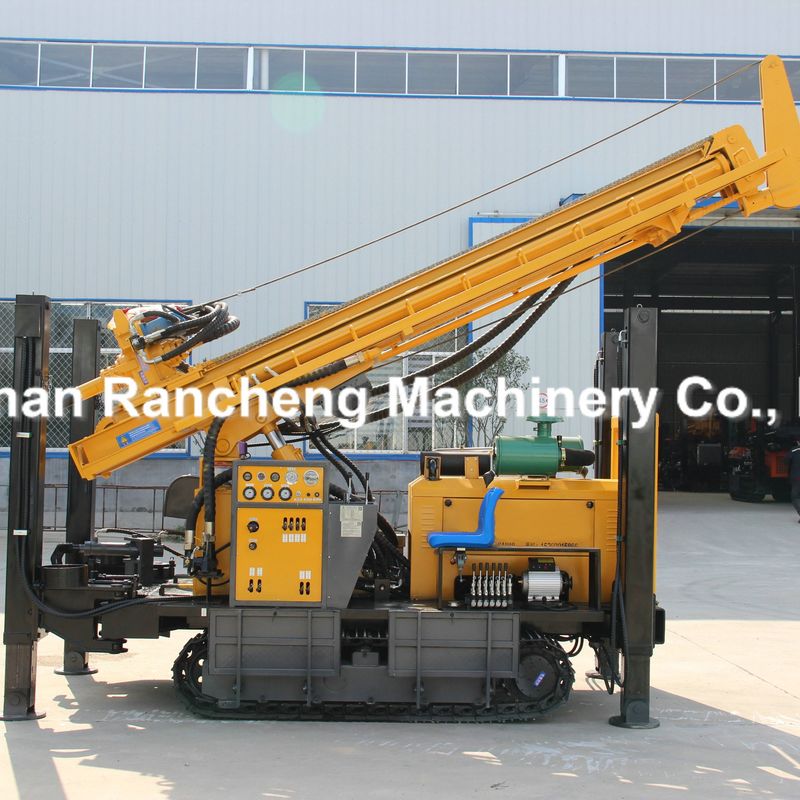

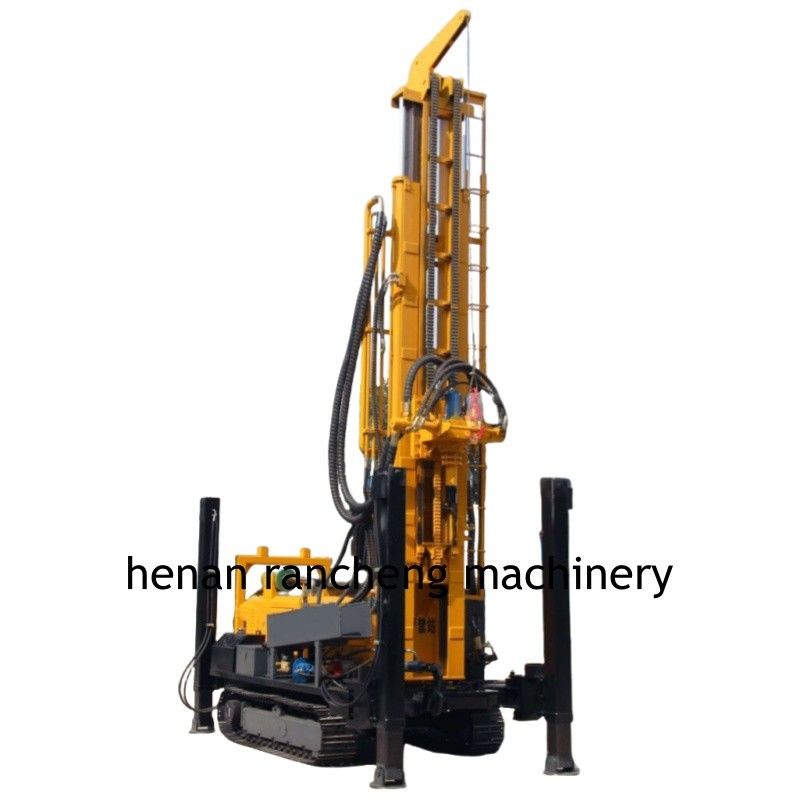

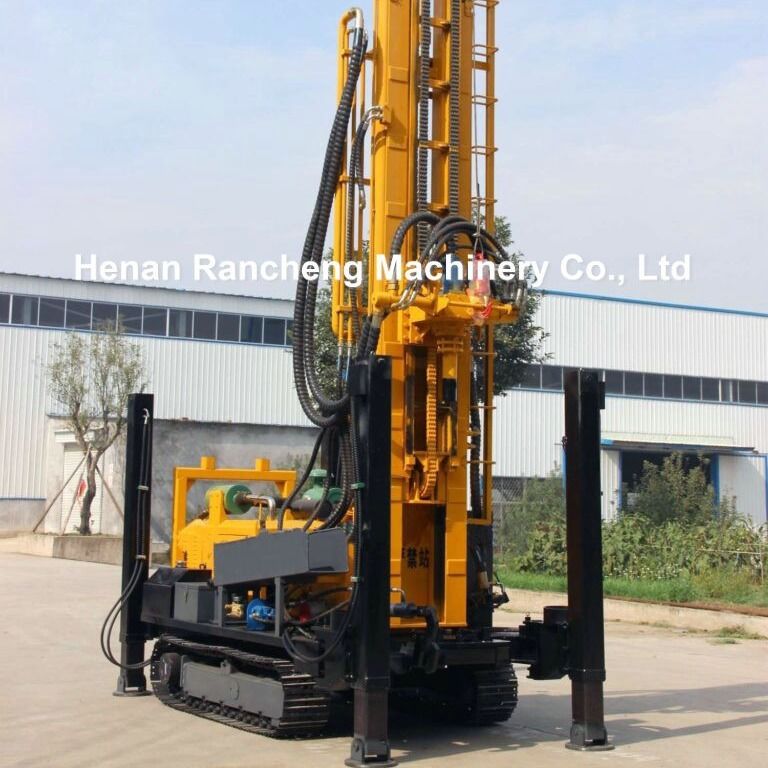

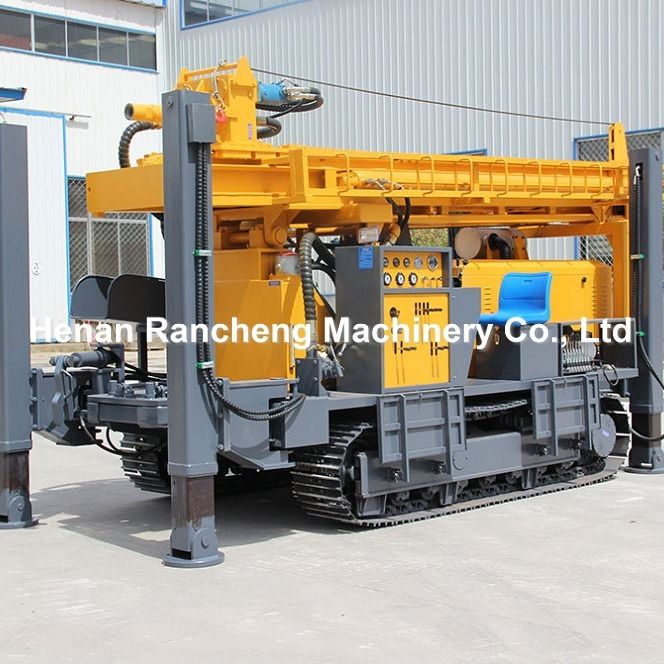

Machine picture display

350m Hydraulic Swivel Diesel Borehole Water Well Drill Rig Equipment Portable Crawler Water Well Drilling Rig Machine 0350m Hydraulic Swivel Diesel Borehole Water Well Drill Rig Equipment Portable Crawler Water Well Drilling Rig Machine 1
350m Hydraulic Swivel Diesel Borehole Water Well Drill Rig Equipment Portable Crawler Water Well Drilling Rig Machine 2
350m Hydraulic Swivel Diesel Borehole Water Well Drill Rig Equipment Portable Crawler Water Well Drilling Rig Machine 3
350m Hydraulic Swivel Diesel Borehole Water Well Drill Rig Equipment Portable Crawler Water Well Drilling Rig Machine 4
