Name: 200m portable crawler mounted small water well rock drilling rig multi-function water well drilling rig borehole machine
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCS200C Taşınabilir Su Kuyusu Sondaj Makinesi
Price: 3,130.00 USD
Availability: InStock

Evde > Ürünler > Taşınabilir Su Kuyu Buhurlama Makinesi >

200m portable crawler mounted small water well rock drilling rig multi-function water well drilling rig borehole machine

200m portable water well drilling rig

crawler mounted borehole machine

multi-function rock drilling rig

Menşe yeri:

Çin

Marka adı:

RanCheng

Sertifika:

CE, ISO 9001:2000

Model numarası:

RCS200C Taşınabilir Su Kuyusu Sondaj Makinesi

Bizimle İletişim

Rica etmek Alıntı

Ürün Ayrıntıları

İsim:

RCS200C Taşınabilir Su Kuyu Sondaj Teçhizatı

Derin matkap:

200m

Matkap çapı (mm):

Ø 450mm içinde

Barındırma kapasitesi (kg):

2000kg

Vurgulamak:

200m portable water well drilling rig

crawler mounted borehole machine

multi-function rock drilling rig

Ödeme ve Nakliye Şartları

Min sipariş miktarı

Fiyat

USD2980-USD3280

Ambalaj bilgileri

Standart Nakliye

Teslim süresi

10-15 iş günü

Ödeme koşulları

T/T, Western Union

Yetenek temini

Ayda 100 set

İlişkili Ürünler

Video

Maksimum Derinlik 200m RCS200C Kauçuk Çamurlu Küçük Su Kuyuları Buhur Makinesi

En İyi Fiyatı Alın

Video

150 metre derinlikte çiftlik sulama kuyuları için hidrolik su delme makinesi

En İyi Fiyatı Alın

Video

Easy Operation RCS200C Rubber Crawler Portable Drilling Rig With 150m Depth 450mm Diameter

En İyi Fiyatı Alın

Video

200m Small Water Well Rock Drilling Rig With 2000KG Hosting Capacity

En İyi Fiyatı Alın

Bizimle İletişim

Şimdi iletişime geçin

Ürün Tanımı

200m portable crawler mounted small water well rock drilling rig multi-function water well drilling rig borehole machine

Product Description

With a drilling depth of up to 200 meters and a diameter range of 100 to 450 mm, this drill can easily handle a wide range of projects. Powered by a 22-horsepower heavy-duty diesel engine, the RCS200C delivers reliable performance in a wide range of geological formations, allowing you to complete your work efficiently.

In short, the RCS200C portable crawler water well drill is designed for users who value efficiency, reliability, and ease of use. Whether you're drilling for agriculture or providing clean water for your home, this drill delivers exceptional results. Explore the unique features of the RCS200C and join the ranks of satisfied users who have made it their favorite. Get ready to take your water well drilling projects to the next level!

Product Specifications

Model	RCS200C
Geology drilled	All kinds
Drill depth	200 m
Drilling Diameter	90 -300mm
Drill system and operation	Hydraulic
For rock	6-20F
Air consumption	17-35m³/min
Air pressure	1.7-3.0Mpa
Rotary head
Rotation Torque	4000-5000N.m
Rotation speed	80-200rpm
Lifting capacity	14000KGS
Pull down capacity	4000KGS
DRILL PIPE
Drill pipe length	2 meter
Drill pipe diameter	60/76/89 mm
MUD PUMP
Flow capacity	160 liter/min
working pressure	1.3MPA
DIMENSIONS
Transport size	230012001700mm
Weight	2000KGS
Diesel engine
Power	45KW Weifang Hengtong

Applications

This water well drilling machine mainly apply to geothermal drilling, farm irrigation,house yard, gardens ,water well drilling and boring drilling etc,it can drill 70-450mm diameter , Max 200m depth,It also can be used in small building piling, like farmhouse or factory, the drilling diameter can reach 450mm ,it can apply to different stratum, such as sand,soil,clay,soft rock and so on.

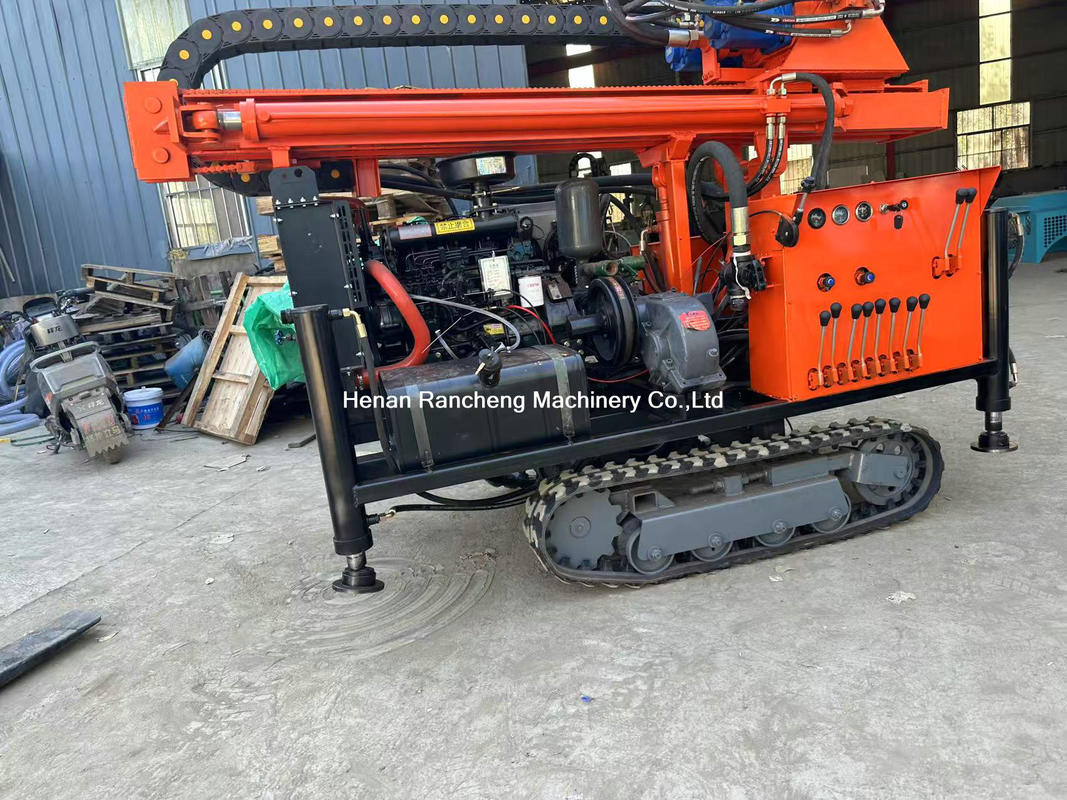

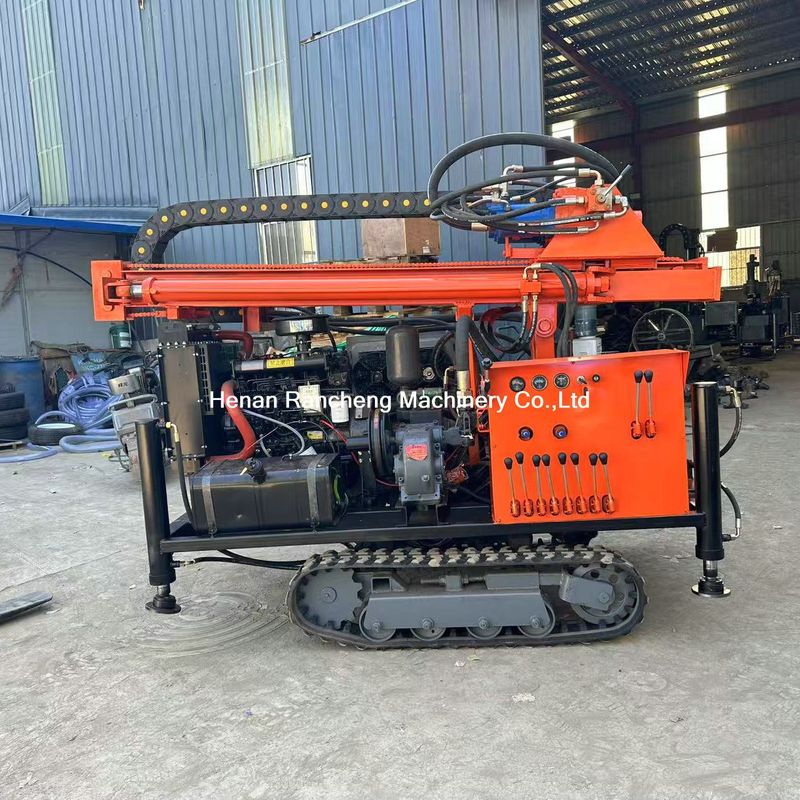

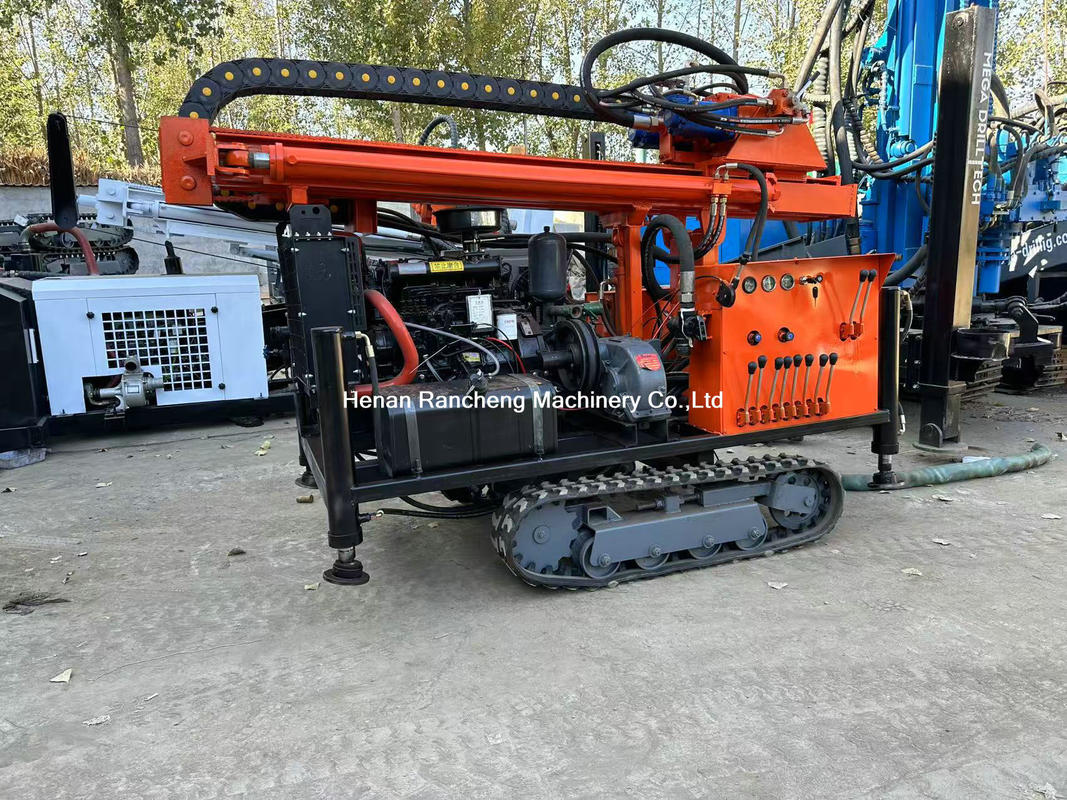

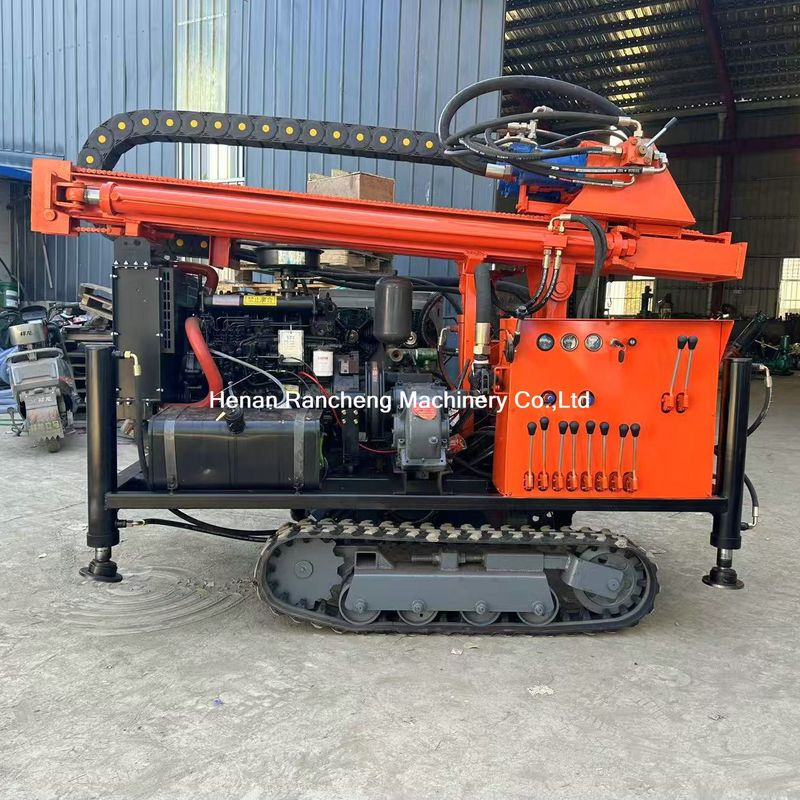

Product Image

200m portable crawler mounted small water well rock drilling rig multi-function water well drilling rig borehole machine 0

200m portable crawler mounted small water well rock drilling rig multi-function water well drilling rig borehole machine 1

200m portable crawler mounted small water well rock drilling rig multi-function water well drilling rig borehole machine 2

200m portable crawler mounted small water well rock drilling rig multi-function water well drilling rig borehole machine 3
