Name: RCF400C Is A Professional 400-Meter Multi-Functional Deep Water Well Drilling Rig
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF400C
Availability: InStock

Evde > Ürünler > Su kuyusu delme makinesi >

RCF400C Is A Professional 400-Meter Multi-Functional Deep Water Well Drilling Rig

400-meter deep water well drilling rig

professional water well drilling machine

multi-functional deep well drilling rig

Menşe yeri:

Çin

Marka adı:

RanCheng

Sertifika:

CE, ISO 9001:2000

Model numarası:

RCF400C

Bizimle İletişim

Rica etmek Alıntı

Ürün Ayrıntıları

Lens kaplama:

89mm/102mm

Delik çapı (çekiç):

140-350mm

Sondaj derinliği:

400m

Kaldırma kapasitesi:

Dönerin maksimum torku:

6200-9000Nm

Dizel Motor:

92KW Yuchai motor

Vurgulamak:

400-meter deep water well drilling rig

professional water well drilling machine

multi-functional deep well drilling rig

Ödeme ve Nakliye Şartları

Min sipariş miktarı

Fiyat

pazarlık edilebilir

Ambalaj bilgileri

Bir adet 20" konteyner ile sevk edilebilir

Teslim süresi

10-15 iş günü

Ödeme koşulları

Banka havalesi, Western Union

Yetenek temini

Ayda 100 takım

İlişkili Ürünler

Video

Küçük Hidrolik Sondaj Silindiri 160m Derinlikte Su Sondaj Makinesi Paletli Su Kuyusu Sondaj Makinesi

En İyi Fiyatı Alın

Video

1000m Derinlik Su Kuyu Kuyu Kuyruklama Makinesi 105mm - 800mm Dia 179KW Derin Kuyu Kuyruklama Rig

En İyi Fiyatı Alın

Video

Hidrolik Pnömatik Su Kuyuları Borlama Ekipmanı 500m Bor Derinliği 118KW Motor

En İyi Fiyatı Alın

Video

800 metre derinlikte su kuyusu delme ekipmanları 153KW Motor 140mm - 500mm çapı

En İyi Fiyatı Alın

Bizimle İletişim

Şimdi iletişime geçin

Ürün Tanımı

RCF400C Is A Professional 400-Meter Multi-Functional Deep Water Well Drilling Rig

The RCF400C deep-water well drilling rig is a new generation of drilling equipment independently developed by our company. The machine is equipped with a high-power down-the-hole (DTH) pneumatic power unit, integrated with an advanced hydraulic system, offering such advantages as rapid drilling speeds, low energy consumption, high rotational torque, and convenient hole deviation correction.

Constructed from high-quality raw materials, the unit features a compact and streamlined body structure; it operates with exceptional stability, exhibits a low failure rate, and offers outstanding durability, cost-effectiveness, and overall value. This model is widely applicable to various drilling projects, including resource exploration, hydrogeological drilling, the construction of civil drinking water wells, and agricultural irrigation systems. Thanks to its superior performance capabilities, the equipment has successfully passed rigorous field testing and has garnered unanimous recognition and acclaim from clients worldwide.

Technical Specifications

Parameter	Specification
Bore Diameter (Hammer)	140-350mm
Bore Depth	400m
Air Consumption	17-36m³/min
Air Pressure	1.7-3.5Mpa
Pipe Diameter	89mm/102mm
Pipe Length	1.5m/2m/3m/6m
Lifting Force	22T
Lifting Speed	3m/min
Feeding Speed	0.5-5m/min
Fast Lifting Speed	20m/min
Fast Feeding Speed	40m/min
Max Torque of Rotary	6200-9000Nm
Rotary Speed	66-135r/min
Hoist Lifting Capacity	2T
Mud Pump Flow	450L/min (option)
High Hydraulic Leg	1.4m
Feeding Efficiency	15-35m/h
Travel Speed	2.5Km/h
Climb Ability	30°
Dimension (L×W×H)	6000×2100×2550mm
Weight	9200Kg
Diesel Engine	92KW Yuchai Engine
Drilling Method	Air Compressor Drilling or Mud Pump Drilling

Key Features & Benefits

1. Fully Hydraulic, Flexible Control: Efficient and Hassle-Free Operation
The machine features a fully hydraulic top-drive design, allowing for independent adjustment of rotation speed, torque, and axial pressure. Drill pipe assembly and disassembly are simple, minimizing auxiliary operation time. Compatible with a wide range of drilling techniques, it delivers rapid drilling speeds and high construction efficiency.
2. High Adaptability, Lower Construction Costs
It supports various drilling methods—including DTH (Down-the-Hole), reverse circulation, and core drilling—and is compatible with a wide array of accessories. Equipped with crawler tracks and extended outriggers, it navigates muddy terrain smoothly and can self-load and unload without the need for a crane. The DTH drilling process lowers the cost per meter of drilling, offering exceptional value for money.
3. Premium Configuration: Stable and Durable Performance
Core hydraulic components are sourced from renowned brands, while the machine body is constructed from high-strength steel. It supports both positive and negative axial pressure adjustment, ensuring optimal impact efficiency at all times. Furthermore, it offers a choice between crawler-mounted and truck-mounted chassis options to suit diverse construction environments.

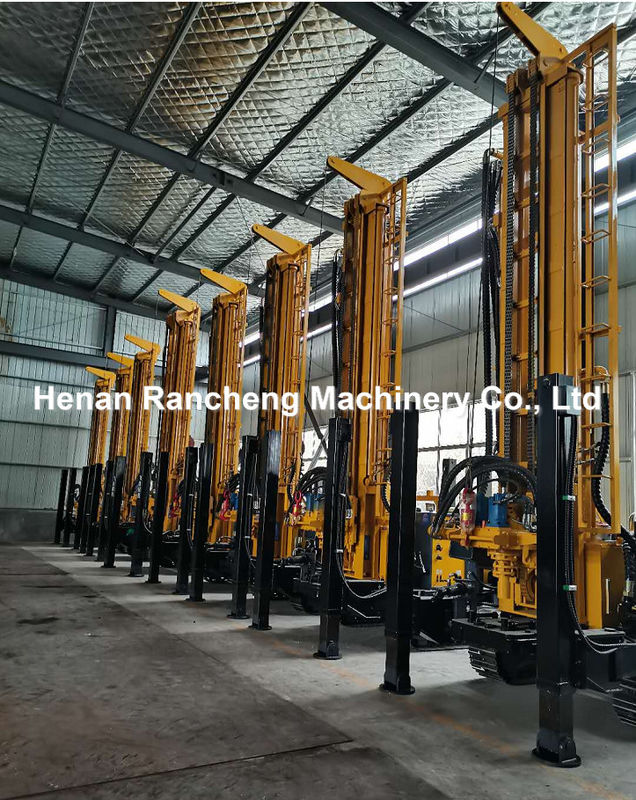

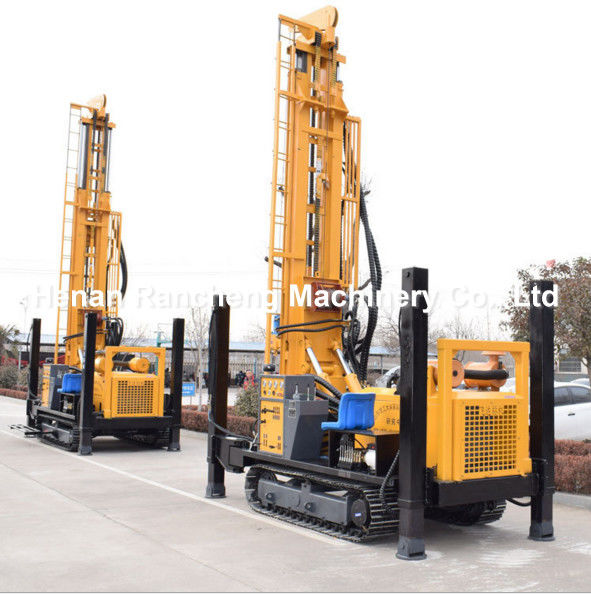

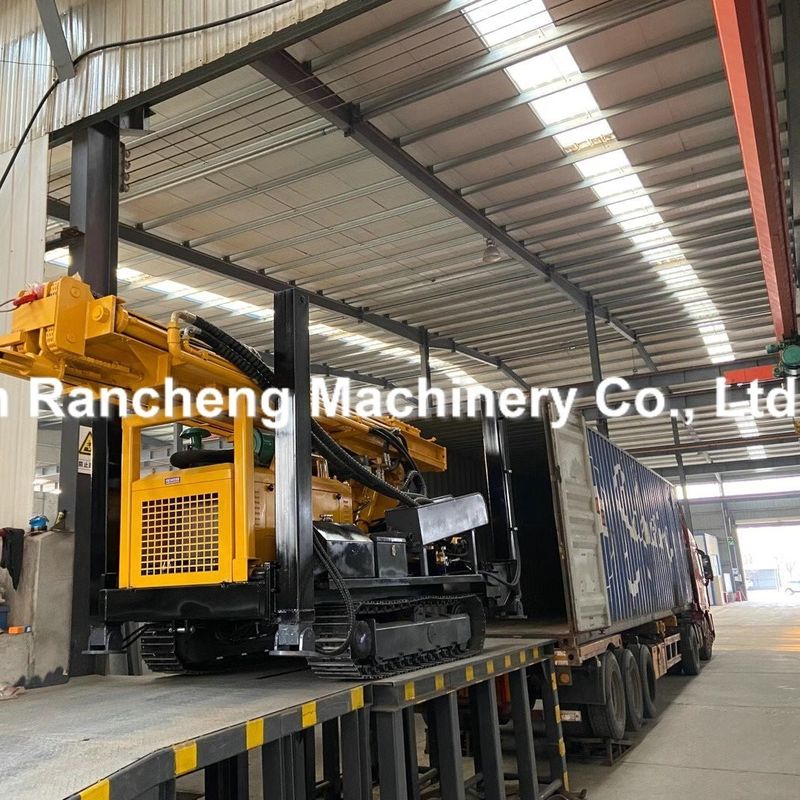

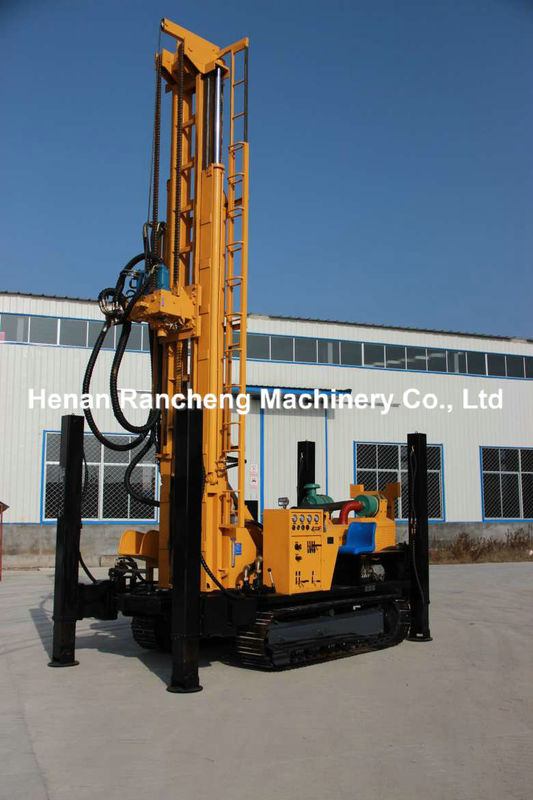

Product Images
